Writing Tests

Naming Requirements

Test Cases

In RPGUnit, a test case is an exported procedures that starts with the name test. This also means that you should not export procedures starting with test if they are not intended to be a test case.

Listed below are some example test case names that follow this naming convention:

test_getEmployeeDetail
test_getDeptDetail
testIsPalindrome
testFactorial

Test Suites

A test suite consists of one or more test cases in a file or source member. This test suite will be compiled into a service program in order to run the test cases. Although RPGUnit itself does not enforce an specific naming convention for test suites, the IBM i Testing extension does based on whether you are working on local files on your PC or source members on the IBM i.

Local Files: The file name must end in .test.rpgle, .test.sqlrpgle, .test.cblle, or .test.sqlcblle in order to be detected by the extension. File names are also not restricted to 10 characters as the extension will use the same rules that Source Orbit uses to handle long file names when compiling the test. Noteably, since all files must include .test, the resulting object name will start with T. These files can also be put in any directory.

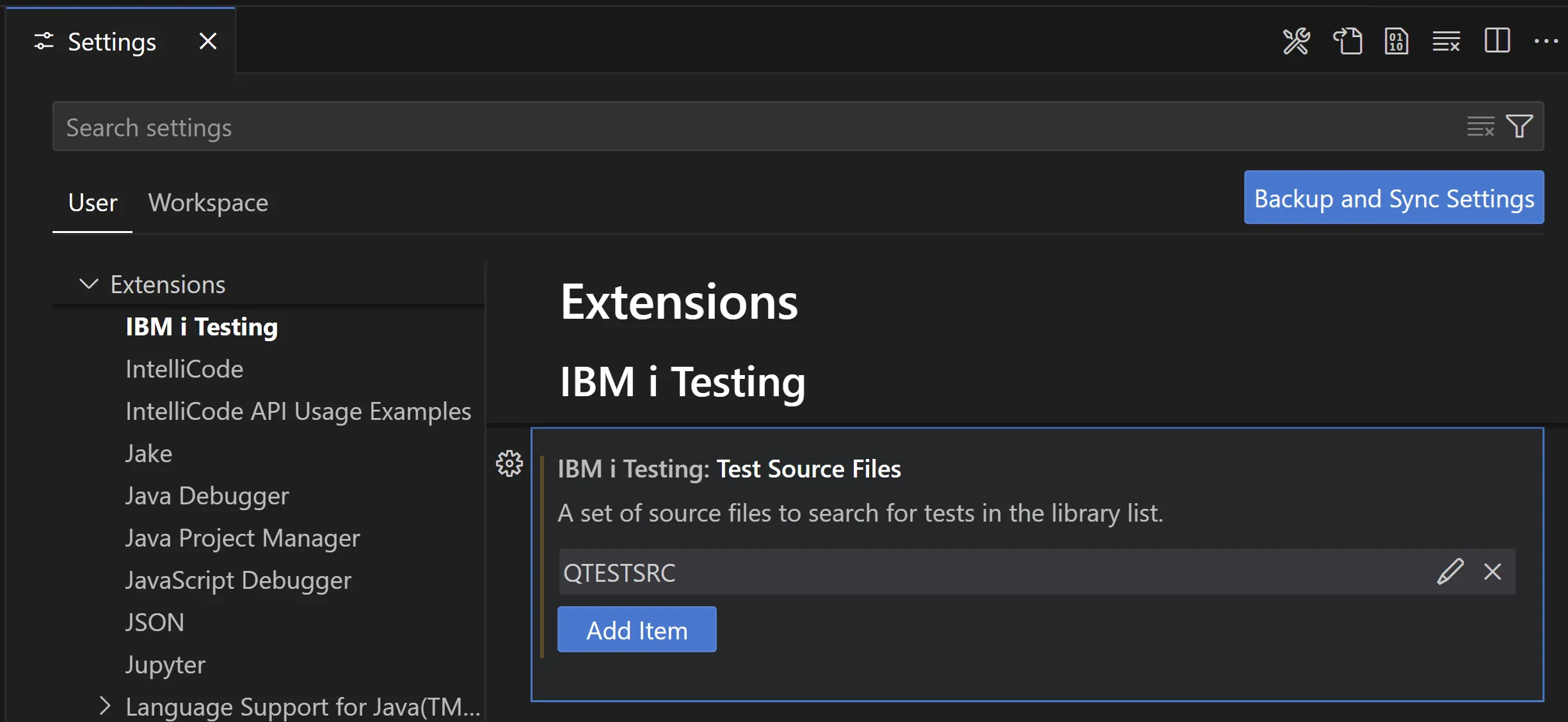

Source Members: Source members can be named freely, but it is recommended to use some sort of prefix or suffix (ie. T, _T, T_, etc.) to avoid naming conflicts as the tests will be compiled into service programs. These source members can be put in any source file, but it is recommended to store them in a source file named QTESTSRC. By default this is where the extension will look for test suites in your library list. You can configure the extension to search other source files by going to the extension’s settings and searching for the Test Source Files setting.

Listed below are some example test suite names that follow this naming convention:

Local Files
- employee.test.rpgle
- department.test.rpgle
- string.test.rpgle
- math.test.rpgle
Source Members
- QTESTSRC source file with members:
  - EMPLOYEET.RPGLE
  - DEPARTMENT.RPGLE
  - T_STRING.RPGLE
  - MATH_T.RPGLE

Generating Test Stubs

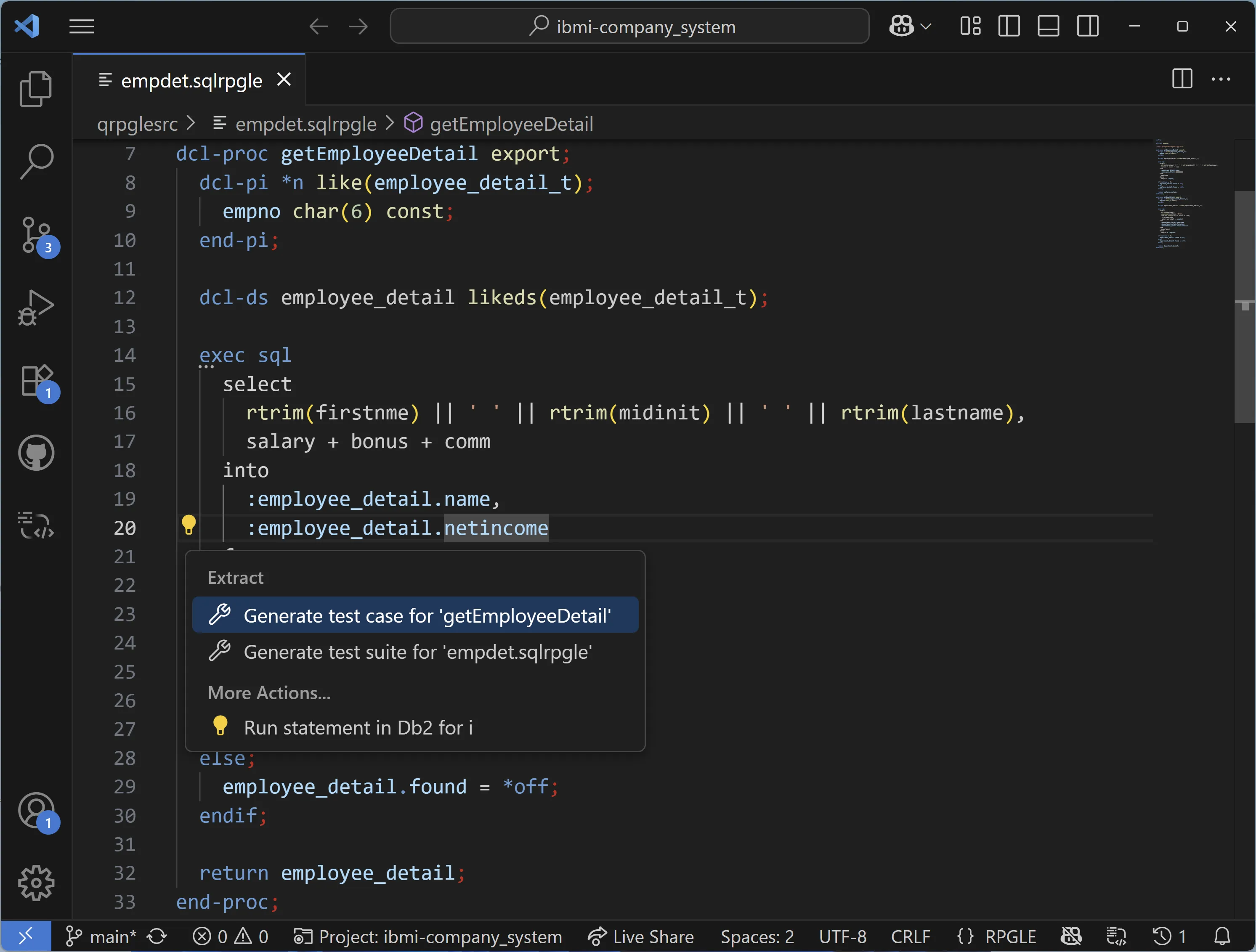

To simplify the process of writing tests, you can have the extension generate stubs for individual test cases or an entire test suite. To do this, place your cursor inside any export procedure and click the code action button (💡). This will give you an option to generate a test case for the specific procedure you are in or to generate a test suite containing test cases for every procedure.

Generating Test Stubs

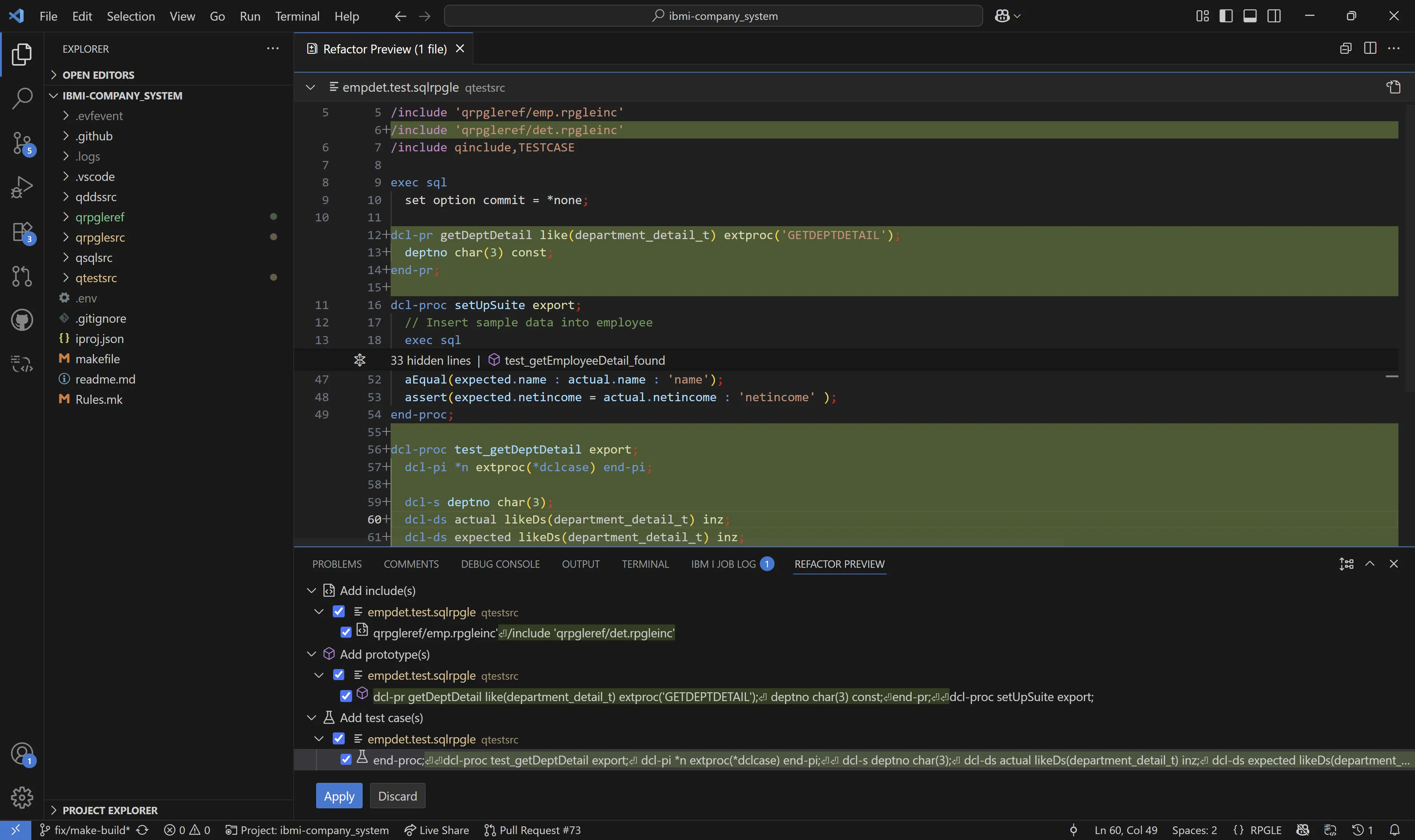

After selecting an option, a test suite will be created if it does not already exist with a scaffold that will include not only the test case stubs, but also the necessary includes and prototypes (if necessary). The generated test case stubs themselves will each be structured into the following sections: declarations, inputs, actual results, expected results, and assertions. As the developer, you will need to fill in the inputs and expected results.

Generated Test Stub

API Reference

In order to use the APIs provided by RPGUnit, you need to add the TESTCASE copybook to your test suite:

/include qinclude,TESTCASE

Setup and Teardown

Set Up Test Suite

Used to set up a test suite before the first test case is started. This procedure can be used to set up test data or allocate resources before the first test case is started.

Syntax

setUpSuite();

Example

dcl-proc setUpSuite export;
  // Setup test suite code here
end-proc;

Set Up Test Case

Used to set up a test case before it is executed. This procedure is called for each test case.

Syntax

setUp();

Example

dcl-proc setUp export;
  // Setup test case code here
end-proc;

Tear Down Test Suite

Used to tear down a test suite after the last test case has been executed. This procedure can be used to remove test data or deallocate resources after the last test case has been executed.

Syntax

tearDownSuite();

Example

dcl-proc tearDownSuite export;
  // Tear down test suite code here
end-proc;

Tear Down Test Case

Used to tear down a test case after it has been executed. This procedure is called for each test case.

Syntax

tearDown();

Example

dcl-proc tearDown export;
  // Tear down test case code here
end-proc;

Equality Assertion

Compares the given expected and actual values (can be a string, numeric, float, date, time, timestamp). The assertion fails, if both values are different. If the message parameter is specified, it is appeneded to the log.

Syntax

assertEqual( 'expected' : 'actual' [: 'message' );

Example

// ✅ Pass
assertEqual( 'Hello' : 'Hello' );
assertEqual( 123 : 123 );

// ❌ Fail
assertEqual( 123.45 : 123.46 );
assertEqual( D'2024-09-16' : D'2023-01-11' );
assertEqual( T'11.22.33' : T'22.33.44' );
assertEqual( Z'2024-09-16-11.22.33.123456' : Z'2024-01-11-11.22.33.123456' );

Custom Assertion

Asserts that the given actual value satisfies the condition specified by the given matcher. Calls the matcher for comparing actual. The assertion fails if the mathcer return false. If the message parameter is specified, it is appeneded to the log.

Syntax

assertThat( expected : actual : matcher [: message );

Example

assertThat( actual : %paddr('matcher') : pUserData );

Boolean Equality Assertion

Compares the given expected and actual Boolean values. The assertion fails, if both values are different. If the fieldName parameter is specified, the message is prefixed with fieldName:.

Syntax

nEqual( expected : actual [: 'fieldName' );

Example

// ✅ Pass
nEqual( *off : 1=2 );

// ❌ Fail
nEqual( *on : 'ABC'='DEF' );

Truthy Assertion

Checks if the specified Boolean expression is true. The assertion fails if the expression evaluates to false. When the assertion fails, the value of message is added to the test report.

Syntax

assert( booleanExpression : 'message' );

Example

// ✅ Pass
assert( 1=1 : 'Impossible to fail' );

// ❌ Fail
assert( 1=0 : 'Obviously wrong' );

Fail

Produces an error and appends the specified message to the test report. The test case is terminated.

Syntax

fail( 'message' );

Example

monitor;
  produceAnException(doFailure);

  // ❌ Fail: Only runs if exception was not caught
  fail('produceAnException(..) should have raised an error.');
on-error;
  // ✅ Pass: Only runs if exception was caught
endmon;

Job Log Contains Assertion

Checks whether the job log contains the specified message ID between NOW and timeLimit. The value of timeLimit should be created with the getFullTimeStamp() utility.

Syntax

assertJobLogContains( msgId : timeLimit );

Example

testStartTime = getFullTimeStamp();
sndMCH1211Msg();

// ✅ Pass
assertJobLogContains( 'MCH1211' : testStartTime );

Message Queue Contains Assertion

Checks whether a given message queue contains the specified message between NOW and timeLimit. The message is identified by any combination of ID, message text or message help where unused selection parameters must be omitted.

Message ID can be set to *EMPTY to test whether a message queue is empty (all other parameters must be omitted).
Message text and message help can be specified as generic strings values.
The value of timeLimit should be created with the getFullTimeStamp() utility.

Syntax

assertMessageQueueContains( userOrQueue : library [: msgId [: msgText [: msgHelp : timeLimit );

Example

testStartTime = getFullTimeStamp();
sndToMSGQ();

// ✅ Pass
assertMessageQueueContains('QMSGQT' : 'QTEMP' : *omit : 'MSGQT - iRPGUnit' : *omit : testStartTime);

testStartTime = getFullTimeStamp();

// ✅ Pass
assertMessageQueueContains('QMSGQT' : 'QTEMP' : '*EMPTY' : *omit : *omit : testStartTime);

String Equality Assertion

Compares the given expected and actual String values. The assertion fails, if both values are different. If the fieldName parameter is specified, the message is prefixed with fieldName:.

Syntax

aEqual( 'expected' : 'actual' [: 'fieldName' );

Example

// ✅ Pass
aEqual( 'Hello' : 'Hello' );

// ❌ Fail
aEqual( 'HelloWorld' : 'Hello' );

Integer Equality Assertion

Compares the given expected and actual Integer values. The assertion fails, if both values are different. If the fieldName parameter is specified, the message is prefixed with fieldName:.

Syntax

iEqual( expected : actual [: 'fieldName' );

Example

// ✅ Pass
iEqual( 123 : 123 );

// ❌ Fail
iEqual( 123 : 456 );

Boolean Equality Assertion

Compares the given expected and actual Boolean values. The assertion fails, if both values are different. If the fieldName parameter is specified, the message is prefixed with fieldName:.

Syntax

nEqual( expected : actual [: 'fieldName' );

Example

// ✅ Pass
nEqual( *off : 1=2 );

// ❌ Fail
nEqual( *on : 'ABC'='DEF' );

Truthy Assertion

Checks if the specified Boolean expression is true. The assertion fails if the expression evaluates to false. When the assertion fails, the value of message is added to the test report.

Syntax

assert( booleanExpression : 'message' );

Example

// ✅ Pass
assert( 1=1 : 'Impossible to fail' );

// ❌ Fail
assert( 1=0 : 'Obviously wrong' );

Fail

Produces an error and appends the specified message to the test report. The test case is terminated.

Syntax

fail( 'message' );

Example

monitor;
  produceAnException(doFailure);

  // ❌ Fail: Only runs if exception was not caught
  fail('produceAnException(..) should have raised an error.');
on-error;
  // ✅ Pass: Only runs if exception was caught
endmon;

Job Log Contains Assertion

Checks whether the job log contains the specified message ID between NOW and timeLimit. The value of timeLimit should be created with the getFullTimeStamp() utility.

Syntax

assertJobLogContains( msgId : timeLimit );

Example

testStartTime = getFullTimeStamp();
sndMCH1211Msg();

// ✅ Pass
assertJobLogContains( 'MCH1211' : testStartTime );

Message Queue Contains Assertion

Message ID can be set to *EMPTY to test whether a message queue is empty (all other parameters must be omitted).
Message text and message help can be specified as generic strings values.
The value of timeLimit should be created with the getFullTimeStamp() utility.

Syntax

assertMessageQueueContains( userOrQueue : library [: msgId [: msgText [: msgHelp : timeLimit );

Example

testStartTime = getFullTimeStamp();
sndToMSGQ();

// ✅ Pass
assertMessageQueueContains('QMSGQT' : 'QTEMP' : *omit : 'MSGQT - iRPGUnit' : *omit : testStartTime);

testStartTime = getFullTimeStamp();

// ✅ Pass
assertMessageQueueContains('QMSGQT' : 'QTEMP' : '*EMPTY' : *omit : *omit : testStartTime);

Utilities

Commonly Used APIs

Get Full Time Stamp

Returns the full current timestamp, without rounding the microseconds like %timestamp() does.

Syntax

getFullTimeStamp();

Return value

timestamp

Example

tmStmp = getFullTimeStamp();

Wait Seconds

Suspends the current job for a specified number of seconds. Optionally displays a status message. When the job resumes the original status message is restored.

Syntax

waitSeconds( seconds [: message )

Return value

void

Example

waitSeconds(3 : 'Waiting 3 seconds ...');

Get Monitored Message

Retrieves the latest *ESCAPE message from the job log. Usually called within the on-error section of a monitor block.

Syntax

getMonitoredMessage( [: doRmvMsg );

Return value

Returns a data structure with the following information:

id - Message ID
text - First level text
pgm - Sender: program name
mod - Sender: module name
proc - Sender: procedure name
specNb - Sender: statement number

Example

monitor;
  a = 10;
  b = 0;
  c = a / b;

  // ❌ Fail: Only runs if exception was not caught
  fail('Division by zero did not raise an error.');
on-error;
  msgInfo = getMonitoredMessage(*ON);
endmon;

// ✅ Pass
aEqual( 'MCH1211' : msgInfo.Id );

Set Low Message Key

Sets the message key of the oldest message in the job log, that is considered to be returned by getMonitoredMessage(). This procedure is automatically called by the RPGUnit, before executing a unit test. Use this procedure with care.

Syntax

setLowMessageKey( msgKey );

Return value

void

Example

setLowMessageKey(msgKey);

Status Message APIs

Display Status Message

Displays a given status message in the status line at the bottom of the screen.

Syntax

displayStatusMessage( message );

Return value

void

Example

displayStatusMessage('Hello World!');

Restore Status Message

Replaces the current status message with the previous message.

Syntax

restoreStatusMessage();

Return value

void

Example

// Display status message.
displayStatusMessage('Hello World!');

// Overwrite status message.
displayStatusMessage('The quick brown fox ...');

// Restore previous 'Hello World!' message.
restoreStatusMessage();

Clear Status Message

Clears (removes) the status message that is currently being displayed at the bottom of the screen.

Syntax

clearStatusMessage();

Return value

void

Example

clearStatusMessage();

CL Command APIs

Clear Physical File

Uses CLRPFM to remove the data from member of file file. The file must be stored in *CURLIB.

Syntax

clrpfm( fileName [: memberName );

Return value

void

Example

clrpfm( 'MYFILE' : 'MYMEMBER' );

Reclaim Activation Group

Uses RCLACTGRP to reclaim the activation group specified at parameter activationGroup.

Syntax

rclActGrp( activationGroupName );

Return value

void

Example

rclActGrp( '*ELIGIBLE' );

Run CL Command

Uses the QCMDEXC API to execute the CL command specified at parameter command.

Syntax

runCmd( command );

Return value

void

Example

runCmd( 'ALCOBJ OBJ((*CURLIB/FILE *FILE *EXCL))' );

Source Type APIs

getMemberType
getStmfType

Get Member Type

Returns the source type of a given source member.

Syntax

getMemberType( sourceFile : library : member );

Return value

char(10)

Example

srcType = getMemberType('QINCLUDE': 'RPGUNIT': 'ASSERT');

Get Stream File Type

Returns the source type of a given stream file.

Syntax

getStmfType( srcStmf );

Return value

char(10)

Example

srcType = getStmfType('/home/dev/mypgm.rpgle');

Example Test Suites

To get started with some sample tests, check out these examples:

ibmi-company_system
RPGUnit templates and self tests
