Overview

The IBM i Testing extension allows developers to run unit tests and generate code coverage results for RPG and COBOL programs on IBM i. Under the covers, this extension leverages the RPGUnit testing framework.

• 👨‍💻 Run Tests: Visualize and run tests suites out of local files or source members.
• ✍️ Generate Stubs: Generate test stubs for individual test cases or an entire test suite.
• ⚙️ Configure Tests: Configure parameters to compile (RUCRTRPG/RUCRTCLB) and run (RUCALLTST) tests.
• 📋 View Test Results: View detailed test results along with inline failure/error messages.
• 🎯 Generate Code Coverage: View line and procedure level code coverage results as an overlay in the editor.

Installation

1. Extensions

The following extensions can be installed from the Visual Studio Code Marketplace or Open VSX Registry:

• IBM i Testing (Required)
• Code for IBM i (Required - 2.16.0 minimum)
• RPGLE (Required - 0.30.0 minimum)
• COBOL (Optional - Install if writing COBOL unit tests)

2. RPGUnit

The RPGUNIT library must be be installed on your IBM i in order to leverage the framework and assertions that it provides. It can be installed easily via the extension using the steps below which is the recommended approach or manually using the instructions here.

Preconditions

RPGUnit requires OS400 7.5 for the latest features. It can also be installed on 7.4 and 7.3 if the following PTFs have been installed:

7.4

• ILE RPG runtime: SI71537
• ILE RPG compiler: SI71536
• SQL Precompile support UTF-8 stream files: SI70942

7.3

• ILE RPG runtime: SI71535
• ILE RPG compiler: SI71534
• SQL Precompile support UTF-8 stream files: SI70936

If the PTFs have not been installed, the library must be recompiled to disable the latest features, such as assertEqual(). PTFs SI70942 and SI70936 are required for compiling test suites from UTF-8 (CCSID: 1208) source stream files.

Library Installation via Extension

Once the PTFs are installed, you can install the library via the extension using the folllowing steps:

1. Connect to your IBM i system.

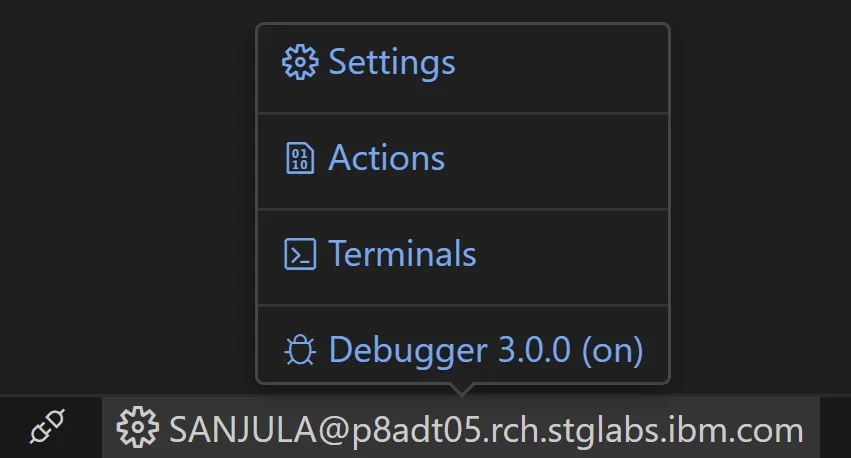

2. Open the connection settings by hovering on the connection in the status bar and selecting Settings.

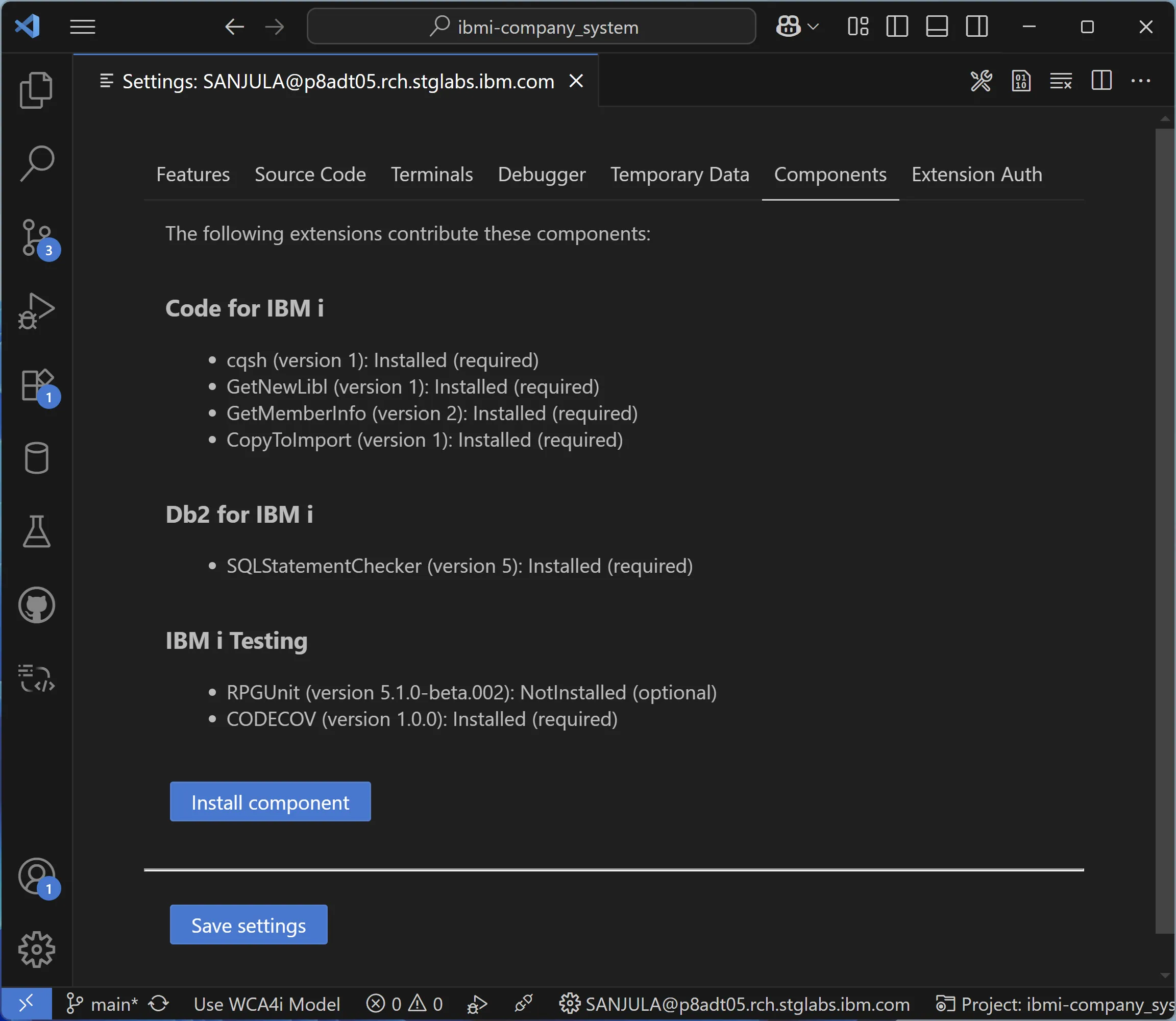

3. Navigate to the Components tab and select Install component.

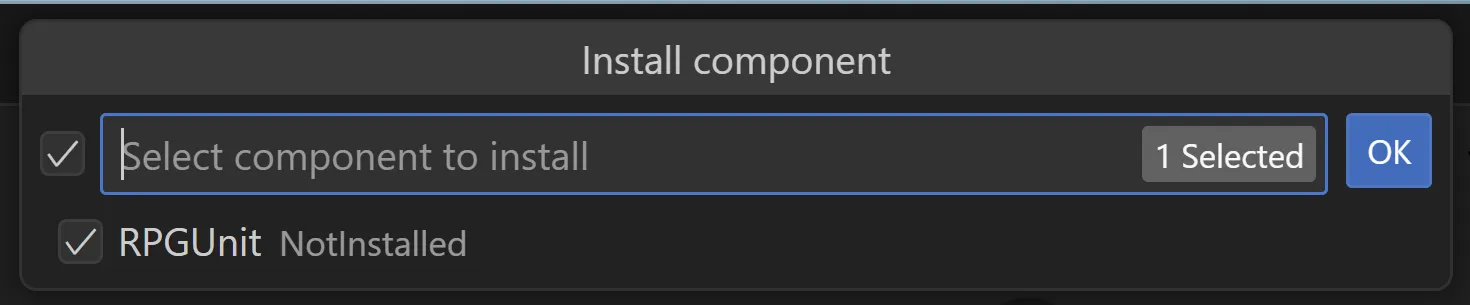

4. Select RPGUnit from the list of available components to install and click Ok.

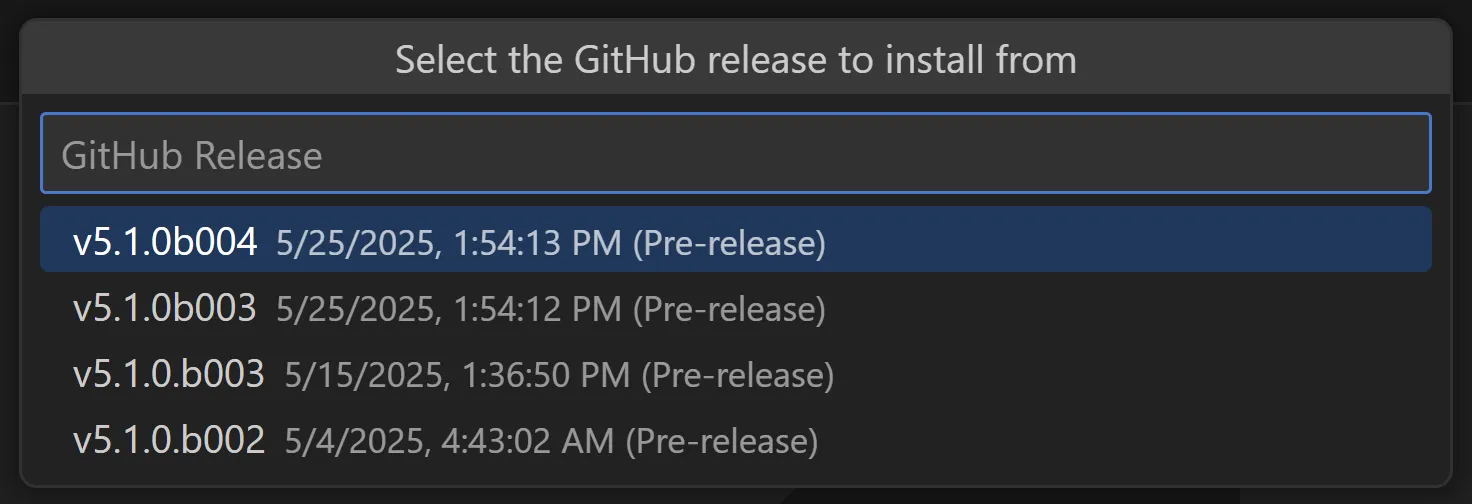

5. Select the GitHub release to install from. In most cases this will be the latest, but you can also select a specific version. More information on each release can be found on the irpgunit GitHub Releases page.

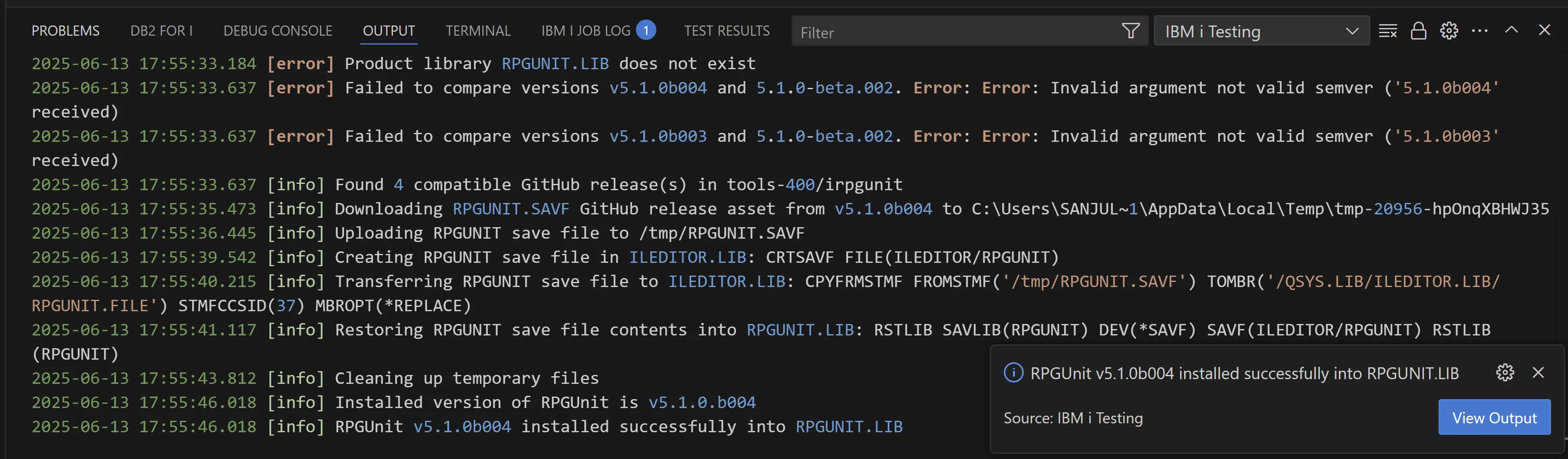

6. The extension will begin installing the RPGUNIT library on your IBM i system. You can monitor the installation progress in the IBM i Testing output channel. This will log all commands executed during the installation as well as any errors or warnings. You will see a notification once the installation is successful or fails.

Note

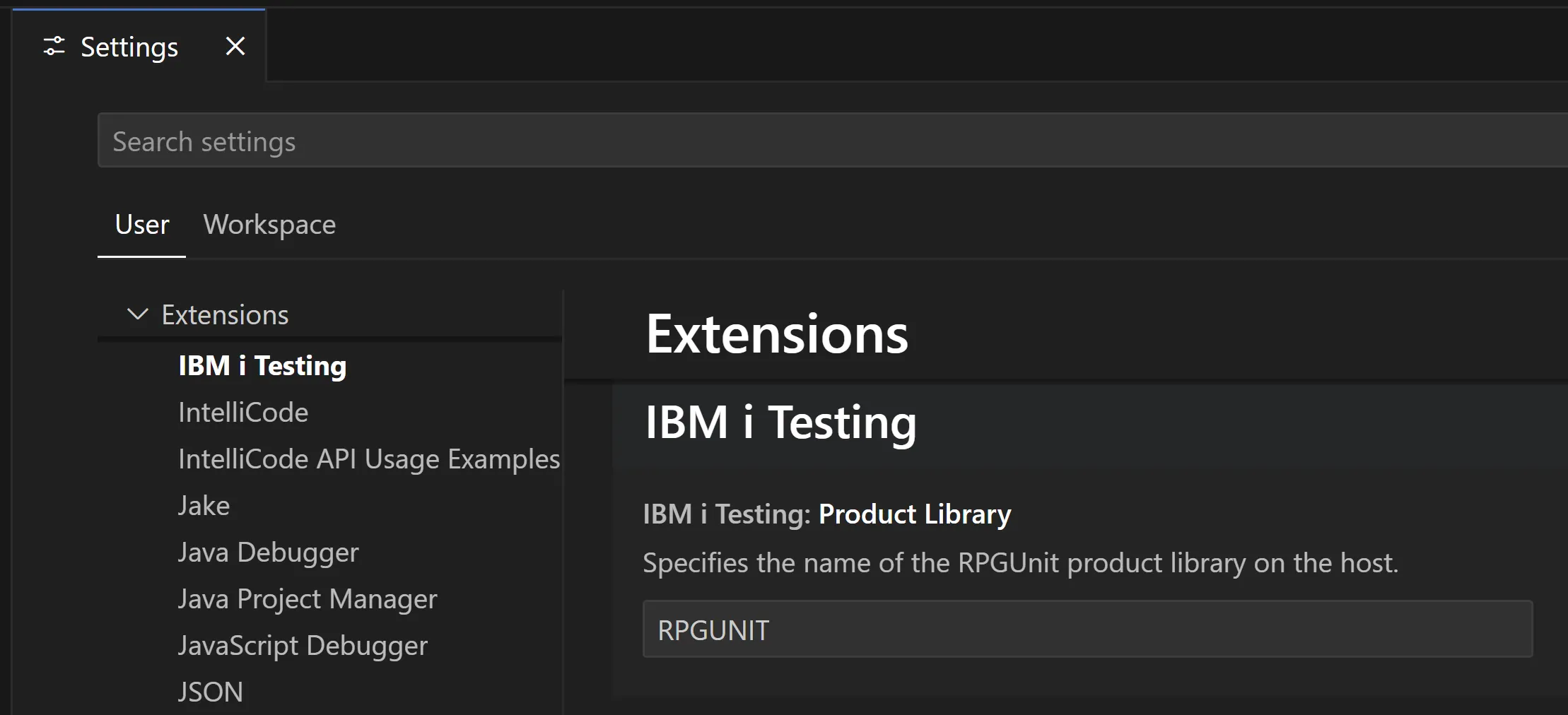

By default, RPGUNIT is the name of the RPGUnit product library which will be installed on the host. This can be configured if necessary by going to the extension’s settings and searching for the Product Library setting.

3. CODECOV

To generate code coverage results, the CODECOV command must be installed on your IBM i via PTF:

• 7.3: PTF SI80728
• 7.4: PTF SI80737 & SI81204
• 7.5: PTF SI81216 & SI81217
